🧪 Reflux Partial Condenser Sizer (Dephlegmator)

Size vertical reflux partial condensers and dephlegmators: Hewitt & Wallis flooding limit velocity, Silver-Bell-Ghaly heat transfer, and overhead vapor enrichment.

⚡ Fortran 90 Engine Double Precision (IEEE 754) ✓ ISO / ASME Validated

Reflux Partial Condenser Sizer (Dephlegmator)

Heat Exchangers

📊 Solver Telemetry ● ACTIVE

👁️ Views 25

⚡ Solves 20

💾 Downloads 370 📦 Fortran Code 4.1 KB

📅 Released Jun 2026

⏱️ Latency < 1 ms

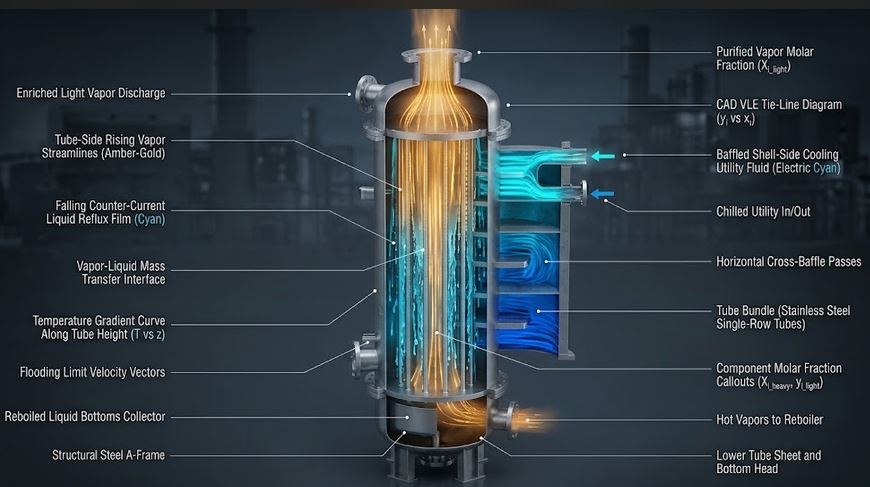

⚡ Counter-Current Vapor Ascent & Falling Liquid Reflux

Real-time visual simulation: Upward rising binary vapor, falling condensate reflux, and overhead purified vapor

📝 Configuration & Presets

🌾 Bioethanol Column Top 🧪 Methanol Stripper Reflux 🛢️ Aromatics Benzene-Toluene 💊 Pharma Acetone Recovery

🧪 Binary Vapor Mixture from Column

Vapor Mixture System:

Vapor Feed Flow ṁ_vap [kg/h]:

Vapor Inlet Temp T_v,in [°C]:

Inlet Light Mole Fraction y_in [%]:

Condensation Reflux Ratio R:

📐 Vertical Tube Bundle Geometry

Number of Vertical Tubes:

Tube Inner Diameter D_i [mm]:

Tube Active Length L [m]:

Cooling Water Inlet T_cool [°C]:

Hewitt & Wallis Flooding Model:
• Flooding Velocity Limit: V_flood = 0.85 · √[g·D_i·(ρ_L−ρ_v)/ρ_v] · [1 + (ρ_v/ρ_L)^1/4·(ṁ_L/ṁ_v)^1/2]^-2
• Flooding Margin: (V_actual / V_flood) · 100% < 80% (Safe operation)
• Silver-Bell-Ghaly Condensation: 1/U = 1/h_cond + Z/h_gas + t_w/k_w + 1/h_cool.

📊 Performance Results

Configure inputs and click Compute to view results.

📘 Calculation Methodology & Dephlegmator Standards

Internal Distillation Action

In a reflux partial condenser (dephlegmator), the counter-current contact between upward rising vapor and descending condensate film provides additional theoretical distillation stages, significantly enriching the overhead vapor.

Hewitt & Wallis Flooding Limit

High upward vapor velocities can bridge the tube diameter and prevent liquid reflux from descending, causing column liquid entrainment and pressure surge.

Key Engineering Assumptions

Silver-Bell-Ghaly multicomponent partial condensation resistance model.
Rayleigh fractionation equilibrium enrichment.
Widely used in bioethanol distillation, solvent recovery, and petrochemical fractionators.
