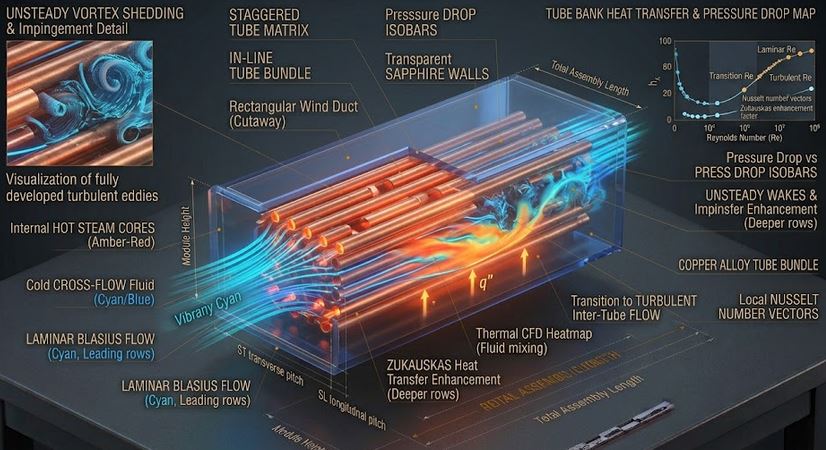

Flow Across Banks of Tubes
Evaluate convection coefficients and pressure drop across inline or staggered tube banks using the Zukauskas correlation.
Aligned vs Staggered Bundles
In crossflow over tube banks, the configuration (inline or staggered) alters the maximum velocity $V_{max}$ inside the bundle channels. Max velocity dictates the Reynolds number ($\text{Re}_{max}$) and the heat transfer rates.
Parameters Setup
Results & Curves
Configure and run the calculator to see the computed results and velocity sweep curve.
Calculation Methodology
Mathematical Model & Theory
Heat transfer across tube bundles is modeled using the Zukauskas correlation:
$$\text{Nu}_D = C_1 C_2 \text{Re}_{max}^m \text{Pr}^{0.36} \left(\frac{\text{Pr}}{\text{Pr}_s}\right)^{0.25}$$
- $C_1$ and $m$ are constants determined from the Reynolds number range ($\text{Re}_{max} = \rho V_{max} D / \mu$).
- $C_2$ is a row correction factor for banks with fewer than 20 rows ($N_L < 20$).
For aligned arrangement, maximum velocity is:
$$V_{max} = V \frac{S_T}{S_T - D}$$
For staggered arrangement, if the diagonal flow area is smaller than the transverse area, then:
$$V_{max} = V \frac{S_T}{2(S_D - D)}$$
Aerodynamic pressure drop is calculated using friction factors:
$$\Delta P = N \chi f \frac{\rho V_{max}^2}{2}$$
Academic References:
- Incropera, F. P., & DeWitt, D. P. (2011). Fundamentals of Heat and Mass Transfer. 7th Edition, John Wiley & Sons.
- Zukauskas, A. (1972). Heat Transfer from Tubes in Crossflow. Advances in Heat Transfer.
Worked Engineering Example
Air at $25^\circ\text{C}$ flows at $5\text{ m/s}$ across an inline tube bank of 10 rows. Tubes of diameter $25\text{ mm}$ are arranged with pitches $S_T = S_L = 50\text{ mm}$. Surface temp is $100^\circ\text{C}$ ($T_f = 62.5^\circ\text{C}$). Find the convection coefficient $h$.
Step-by-step Solution:
1. Evaluate air properties at film temperature:
- $\rho = 1.177\text{ kg/m}^3, \mu = 1.85 \times 10^{-5}\text{ Pa·s}, k = 0.0263\text{ W/m·K}, Pr = 0.71$.
2. Calculate maximum velocity $V_{max}$:
$$V_{max} = V \frac{S_T}{S_T - D} = 5.0 \times \frac{0.05}{0.05 - 0.025} = 10.0\text{ m/s}$$ 3. Calculate maximum Reynolds number:
$$\text{Re}_{max} = \frac{\rho V_{max} D}{\mu} = \frac{1.177 \times 10.0 \times 0.025}{1.85 \times 10^{-5}} = 15,905$$ 4. From Zukauskas constants ($10^3 < \text{Re}_{max} < 2 \times 10^5$, inline):
- $C_1 = 0.27, m = 0.63$. For 10 rows, $C_2 = 0.97$.
$$\text{Nu}_D = 0.27 \times 0.97 \times (15,905)^{0.63} \times (0.71)^{0.36} \times 1.0 = 93.5$$ 5. Calculate convective coefficient $h$:
$$h = \frac{\text{Nu}_D k}{D} = \frac{93.5 \times 0.0263}{0.025} = 98.4\text{ W/m}^2\text{K}$$
