🔥 Hot Tapping & Welding (API 2201)

Evaluate minimum safe pipe wall thickness, burn-through peak temperature (980°C limit), welding heat input (kJ/mm), and HAZ cooling rate (t8/5).

⚡ Fortran 90 Engine Double Precision (IEEE 754) ✓ ISO / ASME Validated

📊 Solver Telemetry ● ACTIVE

👁️ Consultations 23

⚡ Calculs faits 18

💾 Téléchargements 183 📦 Code Fortran 4.4 KB

📅 Mise en service Jun 2026

⏱️ Latence < 1 ms

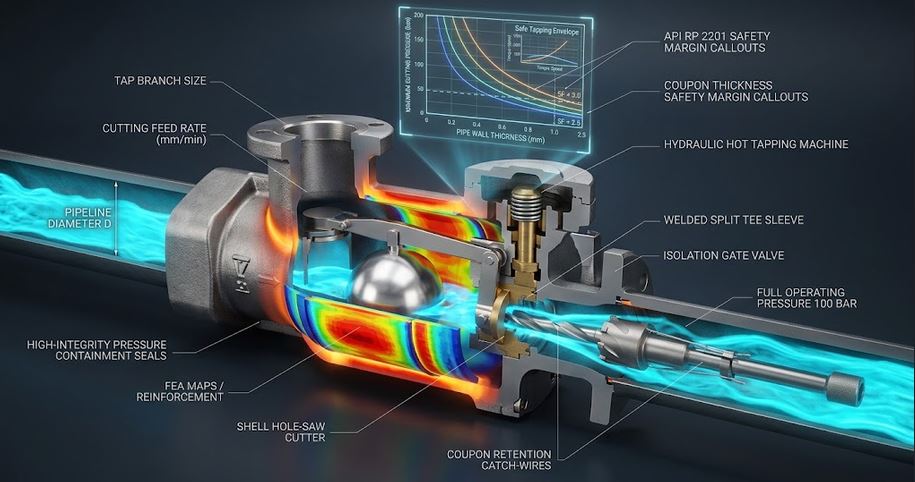

🔥 Live In-Service Hot Tapping Machine & Heat-Affected Zone (HAZ)

Real-time visual simulation of cutter drill penetration, chip retention & weld thermal penetration

📝 Configuration & Presets

🛢️ 12" Crude Oil (45 bar) 💨 24" Natural Gas (65 bar) 🧪 6" Chemical Utility (12 bar) ⚡ 8" Fast Gas Letdown

📐 Pipeline Pipe & Operating Pressure

Run Pipe Outside Diameter D_o [mm]:

Actual Wall Thickness t_run [mm]: API 2201 minimum recommended: ≥ 4.8 mm

Pipe Yield Strength SMYS [MPa]: Gr B: 241 MPa, X52: 358 MPa, X65: 448 MPa

Operating Line Pressure P_op [bar gauge]:

Internal Fluid Flow Velocity [m/s]: Higher velocity provides cooling but accelerates HAZ quench

Branch Hot Tap Diameter [mm]:

⚡ In-Service Welding Heat Input Parameters

Welding Arc Voltage [Volts]:

Welding Current [Amperes]:

Welding Travel Speed [mm/s]: Typical manual stick speed: 2.0 to 4.0 mm/s

API 2201 / PRCI Formulations:
• Heat Input: HI = (η · V · I) / (1000 · v_travel) [kJ/mm]
• Safe Thickness: t_min = (P_op · D_o) / [2 · (0.72 · SMYS)]
• Battelle Peak Inner Temp: T_inner ≤ 980°C (burn-through limit)
• HAZ Cooling Time: t_8/5 = (6700 · HI²) / [t_run² · (1 + 0.35 v_fluid)]

📊 Hot Tapping Safety Results

Configure inputs and click Compute to view results.

📘 Calculation Methodology & API 2201 Standards

Burn-Through Risk Prevention

When welding onto in-service pressurized lines, localized yield strength decreases at elevated temperature. The inner surface must stay below $980^\circ\text{C}$:

                    Tinner = Tfluid + (HI · 1000) / [2π k t (1 + 0.25 √v)]


HAZ Microstructure & Quench Cracking

Flowing internal fluid extracts heat rapidly. If $t_{8/5} < 3.5\,\text{s}$, hard brittle martensite forms, requiring low-hydrogen consumables or preheat.

Key Engineering Assumptions

Standard SMAW / GMAW welding process with arc thermal efficiency $\eta = 0.80$.
Forced convective cooling modeled from internal fluid velocity.
Minimum absolute thickness $4.8\,\text{mm}$ ($0.188\,\text{in}$) per API 2201.
