โ๏ธ Supercritical CO2 Extraction (Chrastil SFE)
Compute dense supercritical CO2 density, botanical solute solubility using the Chrastil model, extraction rate (g/h), batch cycle time, and specific CO2 demand.
โก Fortran 90 Engine
Double Precision (IEEE 754)
โ ISO / ASME Validated
Mass Transfer
๐ Solver Telemetry
โ ACTIVE
๐๏ธ Views
25
โก Solves
21
๐พ Downloads
355
๐ฆ Fortran Code
6.4 KB
๐
Released
Jun 2026
โฑ๏ธ Latency
< 1 ms

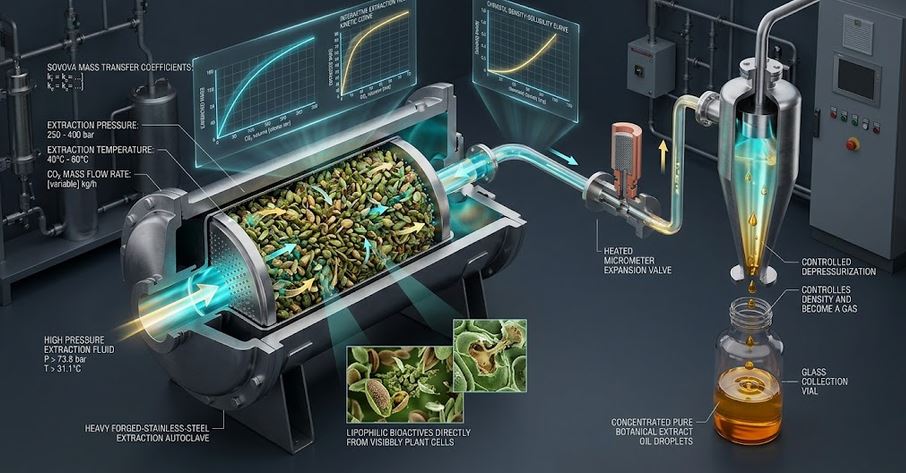

โ๏ธ High-Pressure Supercritical COโ Extractor Autoclave & Separator Flash
Real-time visual simulation of dense scCO2 percolating through botanical matrix into cyclonic collector๐ Configuration & Presets
โ Green Coffee Decaffeination
๐ฟ Herbal Extract / CBD
๐
Tomato Lycopene (380 bar)
๐บ Hops Bitter Acid SFE
Chrastil SFE Formulations:
โข Chrastil Solubility: S = ฯCO2k ยท exp( a/T + b ) [g solute / kg COโ]
โข Extraction Rate: แนext = แนCO2 ยท S [g/h]
โข Extraction Time: t = 0.90 Mโ / (แนCO2 ยท S) [hours]
โข Specific COโ Demand: mCO2 / mextract [kg/kg]
โข Chrastil Solubility: S = ฯCO2k ยท exp( a/T + b ) [g solute / kg COโ]
โข Extraction Rate: แนext = แนCO2 ยท S [g/h]
โข Extraction Time: t = 0.90 Mโ / (แนCO2 ยท S) [hours]
โข Specific COโ Demand: mCO2 / mextract [kg/kg]
๐ SFE Performance Results
Configure inputs and click Compute to view results.
๐ Calculation Methodology & Chrastil SFE Standards
Chrastil Density-Based Model
Solute solubility in dense gas is directly related to the fluid density $\rho$ raised to the association number $k$ of solvent molecules forming a solvato-complex:
ln S = k ยท ln ฯ + (a / T) + b
Sovova Extraction Kinetics
Extraction proceeds in two phases: solubility-controlled constant extraction from broken surface cells, followed by internal diffusion from intact plant vacuoles.
Key Engineering Assumptions
- Critical point of carbon dioxide: $T_c = 31.1^\circ\text{C}$, $P_c = 73.8\,\text{bar}$.
- Equilibrium saturation of $CO_2$ exit stream in early batch phase.
- Total separation in depressurization cyclone flash vessel.
