๐จ Air-Cooled Steam Condenser Sizer (ACC)
Design and size power plant A-frame Air-Cooled Condensers (ACC): steam turbine backpressure, initial temperature difference (ITD), fan cooling air flow, and auxiliary electrical power.
โก Fortran 90 Engine
Double Precision (IEEE 754)
โ ISO / ASME Validated
Heat Exchangers
๐ Solver Telemetry
โ ACTIVE
๐๏ธ Views
29
โก Solves
24
๐พ Downloads
490
๐ฆ Fortran Code
4.1 KB
๐
Released
Jun 2026
โฑ๏ธ Latency
< 1 ms

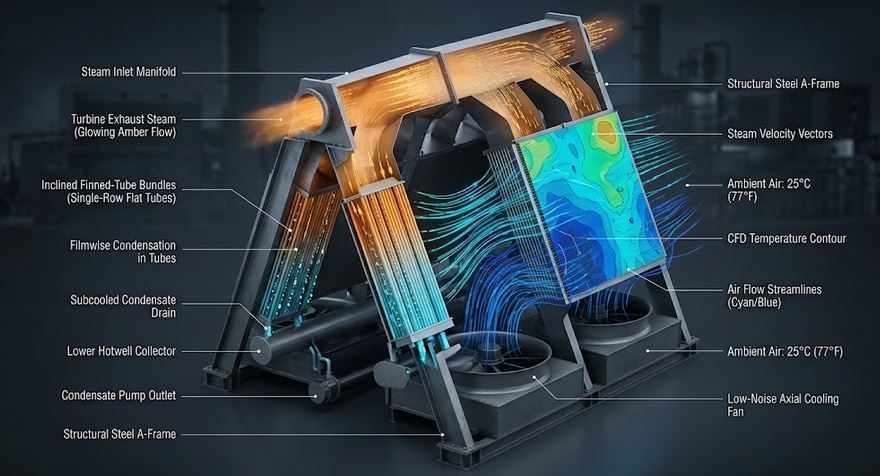

โก Power Plant A-Frame Air-Cooled Condenser Bundle
Real-time visual simulation: Steam turbine exhaust manifold, inclined finned tubes, and forced draft cooling fans๐ Configuration & Presets
โก 400 MW CCGT ACC (12 Bays)
โ๏ธ Desert Solar CSP (42ยฐC)
๐ชต Biomass CHP Plant
โป๏ธ Waste-to-Energy Plant
ACC Thermal Formulation:
โข Saturation Temp: Tsat(Pback) from IAPWS-IF97 steam tables
โข Initial Temp Difference: ITD = Tsat โ Tamb [ยฐC]
โข Thermal Heat Duty: Qฬacc = แนsteam ยท hfg [MWth]
โข Fan Auxiliary Power: Pfan = (Vฬair ยท ฮPair) / ฮทfan [kWe].
โข Saturation Temp: Tsat(Pback) from IAPWS-IF97 steam tables
โข Initial Temp Difference: ITD = Tsat โ Tamb [ยฐC]
โข Thermal Heat Duty: Qฬacc = แนsteam ยท hfg [MWth]
โข Fan Auxiliary Power: Pfan = (Vฬair ยท ฮPair) / ฮทfan [kWe].
๐ ACC Performance Results
Configure inputs and click Compute to view results.
๐ Calculation Methodology & ACC Power Plant Standards
Direct Dry Cooling A-Frame Configuration
Exhaust steam from the steam turbine flows through large overhead steam distribution ducts into inclined finned tube bundles arranged in a 60ยฐ A-frame to minimize footprint and fan power.
Initial Temperature Difference (ITD)
ITD is the primary design metric in dry cooling: $ITD = T_{sat}(P_{back}) - T_{amb}$. Lower ITD values achieve deeper vacuum but require larger heat transfer areas.
Key Engineering Assumptions
- Single-row or two-row flat steel/aluminum finned tube bundles.
- Forced draft axial fans with typical static efficiency $\eta = 65\%$.
- Zero water consumption, suitable for arid regions and water-constrained power plants.
